Description
Product details

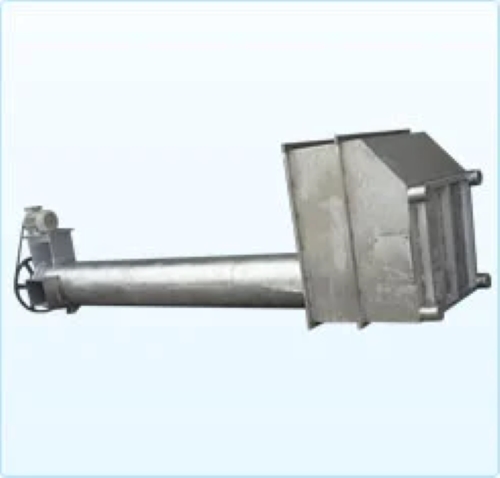

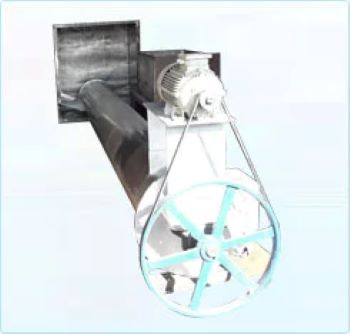

The Hydrolift Destoner Series 4000 from Shree Mona Fabricators is a sophisticated piece of equipment designed for cleaning and processing bulk products. Here’s a breakdown of its features and functions based on your description: Hydrolift Destoner Series 4000 Functionality: Rinsing and Destoning: The primary function is to rinse products to remove unwanted materials such as sand, stones, and other non-floatable substances. This is achieved through water turbulence that separates the contaminants from the product. Elevating: After rinsing, the product is elevated using a vertical auger. The vertical auger creates a constant speed and maintains water turbulence to ensure effective cleaning and consistent elevation. Specifications: Receiving Hopper: Dimensions: 24" Length x 48" Width x 24" Depth Made of stainless steel (S/S) to ensure durability and ease of cleaning. Auger: Diameter: 14 inches Shaft Diameter: 2 1/2 inches Used for elevating the product and creating turbulence. Discharge Port: Size: 14" x 14" Height: 102 inches (for discharge into other processes or containers). Clean-Out Chute: Dimensions: 10" Length x 5 1/2" Width Facilitates easy removal of residual materials and maintenance. Inlet/Outlet Ports: Two 4 1/2" diameter tri-clover ports for fluid or material connections. Overall Dimensions: Length: 52 inches Width: 52 inches Height: 138 inches Capacity: Rated up to 25,000 lbs per hour, depending on the application and material being processed. Applications: Suitable for industries that require bulk cleaning and processing, such as food processing, agriculture, and mining. Ideal for handling materials that need to be free from contaminants before further processing or packaging. This machine integrates effective cleaning with efficient material handling, enhancing productivity and ensuring the quality of the processed product. If you need more detailed information or have specific questions about its operation or maintenance, feel free to ask! by Shree Mona Fabrication
